Aircraft that make your jaw drop!


budman said:
Did ya get good photos from the museum you just visited??
Click to expand...
Sort of. I have a crapload of images from previous visits, and I tend to look at aircraft in a different manner than most people. I now take pics of certain parts or portions of aircraft that fascinate me or catch my eye.

In this visit I focused on getting the aircraft serial numbers to allow me to look up the history of that specific aircraft. I also took pics of parts of the aircraft that I have not noticed previously that may indicate an unusual modification for a specific mission or test.

Military aircraft nerd for sure. I’ll post a couple examples….standby.

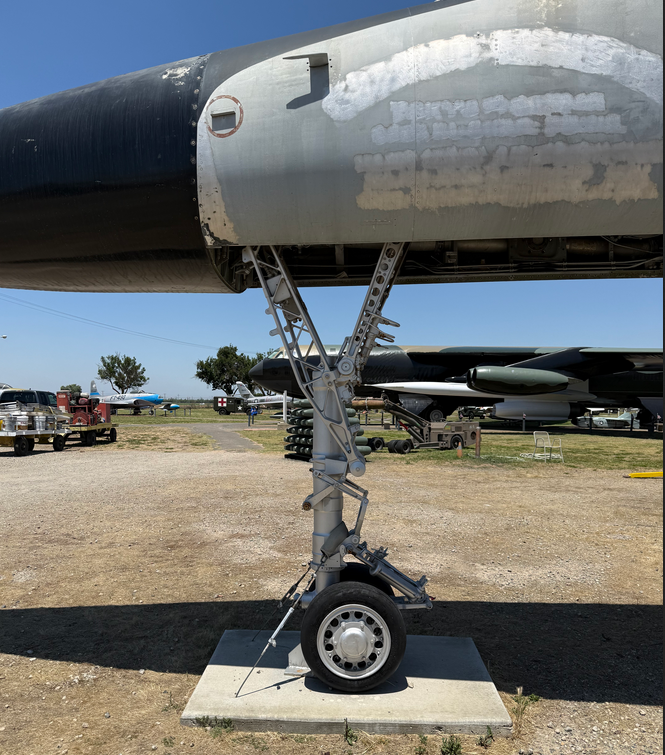

The design of the nose gear of the B-58 fascinates me. It appears very light and weak in my opinion. May be due to my experience with aircraft that land on aircraft carriers. They are much heavier / beefier.

Another example:

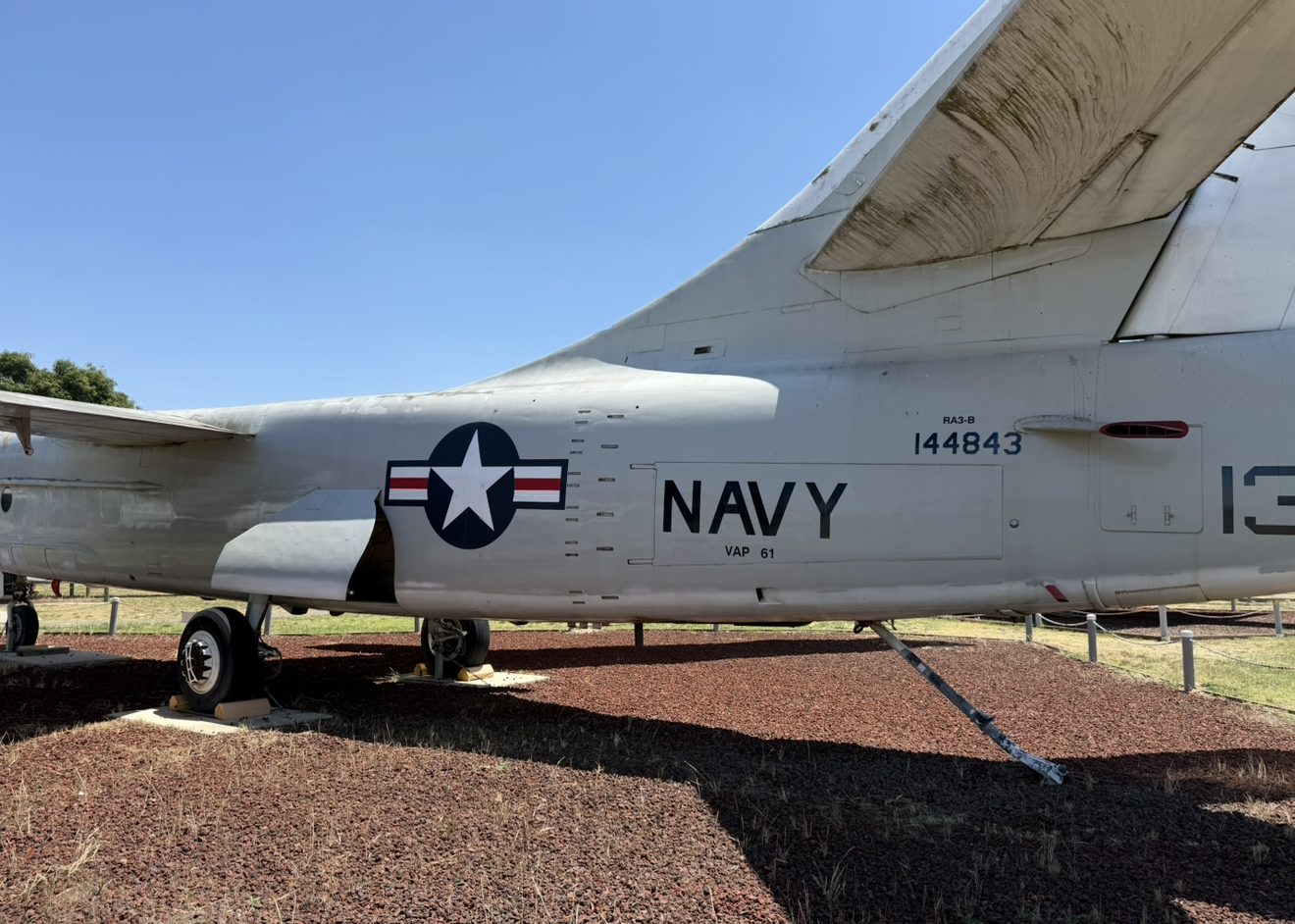

This is an A-3 Skywarrior. Do you see the horizontal marks between the emblem and “NAVY”?


I recognize them as JATO (rocket) mounting brackets / latches. I don’t remember seeing them on the many A-3s that I’ve seen, and I had to look it up. I never knew this was a capability the A-3 had. Notice the gun turret at the back of the aircraft.

Another pic of the same aircraft.



And 'leased' to the US Army for testing the Patriot missile.

Last edited:
Enchanter said:
Another example:
This is an A-3 Skywarrior. Do you see the horizontal marks between the emblem and “NAVY”?

View attachment 595388
I recognize them as JATO (rocket) mounting brackets / latches. I don’t remember seeing them on the many A-3s that I’ve seen, and I had to look it up. I never knew this was a capability the A-3 had. Notice the gun turret at the back of the aircraft.
View attachment 595387

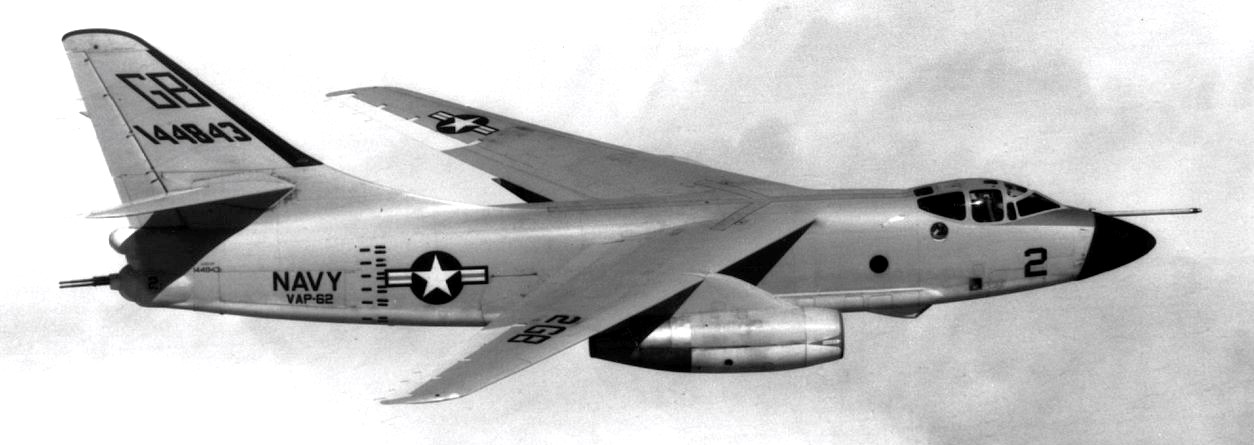

Another pic of the same aircraft.
View attachment 595389

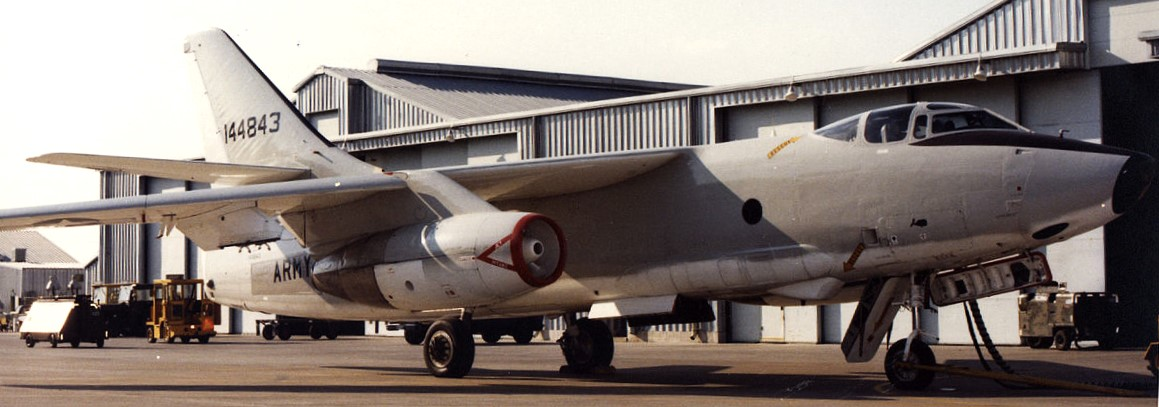

And 'leased' to the US Army for testing the Patriot missile.
View attachment 595390
Click to expand...
I love the Whale. It's so amazing they operated off Essex-class decks.
